The multi level container homes is a uniquely designed modular, prefabricated, fully functional portable home

Features



Introduction:



Multi Level Container Homes have become increasingly popular among home buyers, and as a result, manufacturers in China have developed innovative designs and advanced building techniques to cater to this growing demand. These homes are customizable and offer a unique and sustainable living experience in urban and rural environments. Container homes are cost-effective, efficient, durable, and easy to construct, and therefore have become a popular choice for people searching for affordable housing or extra space.



Design:



The first feature of Multi Level Container Homes is that they are modular and customizable. This means they can be adapted to suit any style, shape, and size. Custom interior design can include a variety of features including open plan living areas, kitchen spaces and unique storage options. There are different colors, textures, and finishes that can be used to customize the look and feel of the home. The homes can be designed to meet unique requirements of the intended occupants to accommodate family structure, work demands, leisure and entertainment interests, and other factors that would improve residents’ quality of life.



Structure:



Multi Level Container Homes are made of steel, which gives them a strength and durability that rival conventional homes. The steel is treated and coated to prevent corrosion, weather and sun damage, and extreme temperatures. The multiple stacked containers are anchored, bolted, and welded together to form the structure, and this makes them resistant to environmental, physical or accidental damage. With proper maintenance, Container Homes can last up to 50 years or more, and they are resistant to pests and other attacks that may damage a conventional wooden-framed home.



Sustainability:



Multi Level Container Homes are sustainable, energy-efficient and environmentally friendly. These homes are built from containers that are recycled and repurposed, and this gives them an ecological advantage over conventional homes. The construction process has minimal impact on the environment and the reduced use of fossil fuels in their manufacture and delivery makes them a preferred choice for green-conscious individuals. They are designed to optimize the passive use of daylight, natural ventilation, and rainwater harvesting, and can also be fitted with solar panels, green roofs, and other renewable energy systems to further reduce carbon footprint.



Functionality:



Multi Level Container Homes are functional, adaptable and versatile. These homes are suitable for a variety of uses, from personal residences to commercial and public spaces. For example, they can be used as offices, classrooms, hospitality venues, medical clinics, shops, and even as mobile homes. Due to their modular design and stackability, additional containers can be easily added or removed to increase or decrease the size of the home, or its purpose. They are also easy to transport, and this makes it possible to set up the home on almost any site, without the need for large-scale excavation or additional infrastructure.



Affordability:



Multi Level Container Homes are an affordable housing solution that can accommodate a wide range of budgets. These homes are cost-effective to build, and the final cost depends on the home’s design and specifications. The modular design means that construction can be completed much faster compared to traditional construction methods. This often results in lower construction costs, which ultimately results in a more affordable product. Additionally, shipping costs can be lowered due to the compact and stackable nature of the containers.



Conclusion:



Multi Level Container Homes provide a new way of building innovative, sustainable, and affordable homes that are adaptable, functional, and flexible in their use. The use of recycled materials, energy-efficient design, and easy customization makes container homes ideal for eco-conscious, design-savvy and cost-conscious homebuyers. As a manufacturer in China, we are dedicated to providing the highest quality of Multi Level Container Homes to merchants, and we are committed to delivering an innovative and unique housing solution that meets our customer’s needs. Contact us today to learn more about how we can create a custom Multi Level Container Home that fits your specific requirements.

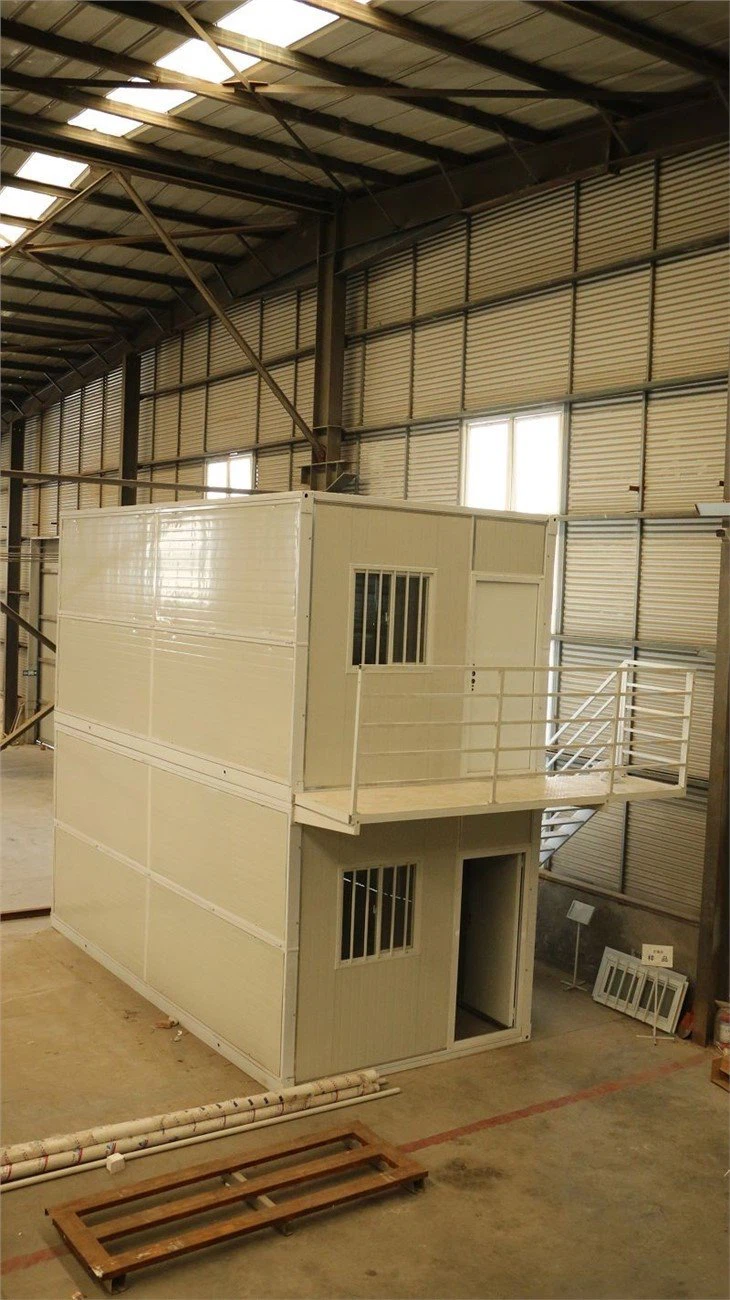

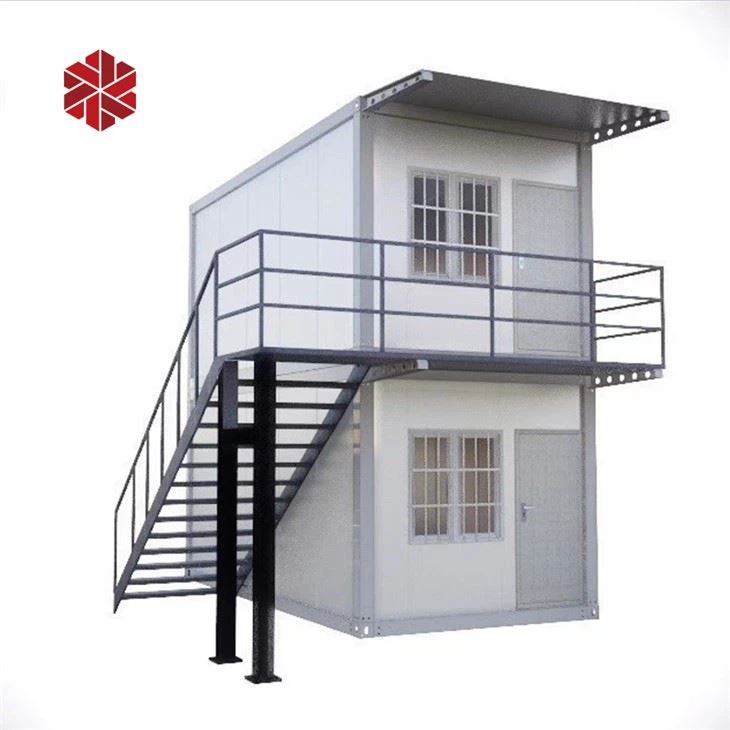

These multi level container homes feature a unique modular design and are fully functional, with prefabricated hydroelectric systems. Its space size is 20 feet, which is enough to accommodate the items needed for daily life, such as beds, cabinets, tables and so on. This container house adopts a multi-layer design, and the internal layout, floor color, and wall color can all be customized according to the needs of customers. It also includes balconies and stairs, and the location of doors and windows is optional. This shipping container home is perfect for use as an emergency room, isolation room, or office.

Advantages

1. The special design allows this container house to be transported as a whole without damage, saving transportation costs.

2. The light steel structure and sandwich panels form a stable main structure, so this container house can resist hurricanes of magnitude 9-11 and earthquakes of magnitude 10.

3. These multi level container homes have a service life of more than 20 years.

4. Multiple units can be combined with each other to form a larger building to meet more needs.

Product Description

Basic Characteristics Outside size (mm) L5800mm*H2500mm*W2480mm
The total weight (kg) 1300
Design Parameter Structural design service life More than 20 years
Fire rating Class A fire protection
Earthquake resistance 10 earthquake resistance
Wind resistance level 10 wind resistance
Wall deformation coefficient ≦300kg/m²
Frame Construction Top girder Special shaped steel galvanized

concave convex pipe

63mm*80mm*1.5mm(both sides)

Bottom girder Special shaped steel galvanized

concave convex pipe

63mm*160mm*2.0mm(both sides)

Top beam Galvanized square pipe

50mm*50mm*1.8mm

Front and rear end

girder

Special shaped steel galvanized

concave convex pipe

63mm*80mm*1.5(both sides)

Sidewall frame Special shaped steel galvanized

concave convex pipe

63mm*80mm*1.5(both sides)

Bottom crossbeam Galvanized square steel pipe

40mm*80mm*2.0mm

Folding hinge Galvanized hinge

85mm*115mm*3mm

(Shaft column304stainless steel)

Integral frame

protective coating

Cabaret high gloss enamel
Roof Integral frame paint Electrostatic spray/straight plastic powder
External roof galvanized 0.8 mm
The internal ceiling Caigang veneer V/830/0.37 mm
Floor Fire-resistant glass magnesium floor 15mm
Wall panel 75mm composite board 0.3mm+glass cotton+0.3mm
Windows 920*920 single glass push-pull window plastic steel window, glass thickness of 4mm
Security door 970*1970 High-quality security door
Electric Including inlet 4² national standard soft copper wire, 20A circuit breaker 1, inlet socket 2.5, five-hole single-open socket 1, air conditioner socket 1, LED lamp 1.

Container houses, also known as shipping container homes. They are popular for their affordability, mobility, and eco-friendliness. They can be used for a variety of applications including:

1. Residential housing: Container houses can be used as primary residences or vacation homes.

2. Emergency housing: In areas affected by natural disasters or refugee crises, container houses can be used to provide temporary housing solutions.

3. Offices and retail spaces: Container houses can be used for commercial purposes such as offices, retail spaces, and even cafes.

4. Educational institutions: Container houses can be used to build classrooms, libraries, and other educational facilities.

5. Art installations and cultural centers: Designers and artists often use shipping containers to create unique and versatile installations and pop-up venues.

6. Mobile homes: Containers can be designed for easy transport, making them a great option for mobile homes such as RVs and tiny houses.

Overall, container houses have a wide range of applications and can be customized to suit various needs and tastes.



Why choose us?

  • We offer custom designs for Folding Container Houses to meet specific customer needs.
  • We follow the complete warehousing and delivery quality inspection procedures to ensure the high quality and high qualified rate of Multi Level Container Homes.
  • Our Folding Container Houses are designed with practicality and functionality in mind.
  • We take the policy of ‘pursuing refinement by quality, change by newness, honesty and customer first’ as the action guide, and we are striding towards the goal of zero defect in product quality.
  • We offer quality Folding Container Houses with affordable prices.
  • Our products are of good quality and reasonable price, and are favored by domestic customers. The products sell well all over the country.
  • Custom orders for Folding Container Houses are welcome.
  • Quality is the foundation of enterprise survival. Improving production efficiency, developing high-tech products, learning western technology and creating our own brand are our consistent pursuit.
  • Our company has a wealth of experience in producing Folding Container Houses at a professional level.
  • The company is striding forward in the game of the same industry, and sincerely hopes to cooperate with friends from all walks of life, new and old customers, to make progress together and achieve prosperity together!
